TLY-5-Based 2-Layer PCB: Built for High-Frequency Excellence

Name: TLY5Based 2Layer PCB Built for HighFrequency Excellence
Brand: Taconic
Price: 2.99 USD

Buy cheap TLY-5-Based 2-Layer PCB: Built for High-Frequency Excellence product

Brand Name : Taconic

Model Number : TLY-5

Certification : ISO9001

Place of Origin : China

MOQ : 1PCS

Price : 2.99USD/pcs

Payment Terms : T/T, Paypal

Supply Ability : 50000pcs

Delivery Time : 2-10 working days

Packaging Details : Packing

Final Foil External : 1 oz

Solder Mask Colour : White

Board Type : Double Sided PCB

Appearance : Engraving and electro polishing

Mobile Responsiveness : Yes

Fiducial Mark : Through hole

Analytics : Yes

Glass Epoxy : Polyimide (PI) 25um

Multiple Authors : Yes

Mobile Responsive : Yes

Material : RO4830

Coverlay Colour : White, black, yellow, red etc

Number Of Layers : 1

Content Management System : Yes

Contact Now

TLY-5-Based 2-Layer PCB: Built for High-Frequency Excellence

Looking for a PCB that delivers exceptional performance in high-frequency applications? Meet our 2-layer PCB with TLY-5 material—a perfect solution for demanding RF and microwave designs like automotive radar, satellite communications, and power amplifiers.

Why TLY-5?

Dielectric Constant (Dk): 2.2 ± 0.02 at 10 GHz for stable signal propagation.
Low Dissipation Factor (Df): 0.0009 at 10 GHz minimizes signal loss.
Dimensional Stability: Woven fiberglass ensures reliability across all temperatures.
Moisture Resistance: 0.02% absorption for consistent performance in humid environments.

Key PCB Specs

Layer Count: 2 layers
Thickness: 3.2mm
Copper Weight: 1oz (outer layers)
Surface Finish: Immersion Gold (ENIG)
Trace/Space: 7/7 mils

Applications

From 77 GHz automotive radar to Ka-band satellite systems, this PCB is perfect for low-loss performance, precision, and reliability.

Ready to build your next high-frequency design? Reach out to Sally at sales30@bichengpcb.com. Let’s make it happen!

TLY-5-Based 2-Layer PCB: Built for High-Frequency Excellence

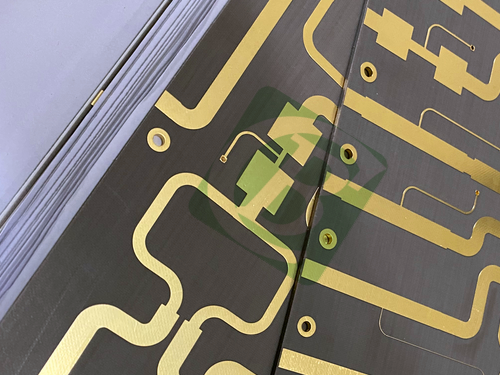

TLY-5-Based 2-Layer PCB: Built for High-Frequency Excellence Images
